'Shree' Lobe Pumps

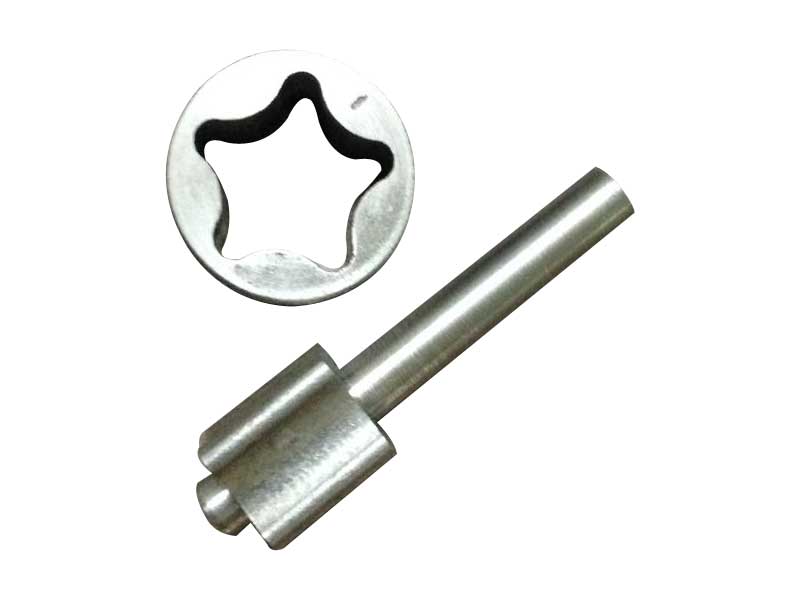

Lobe Element

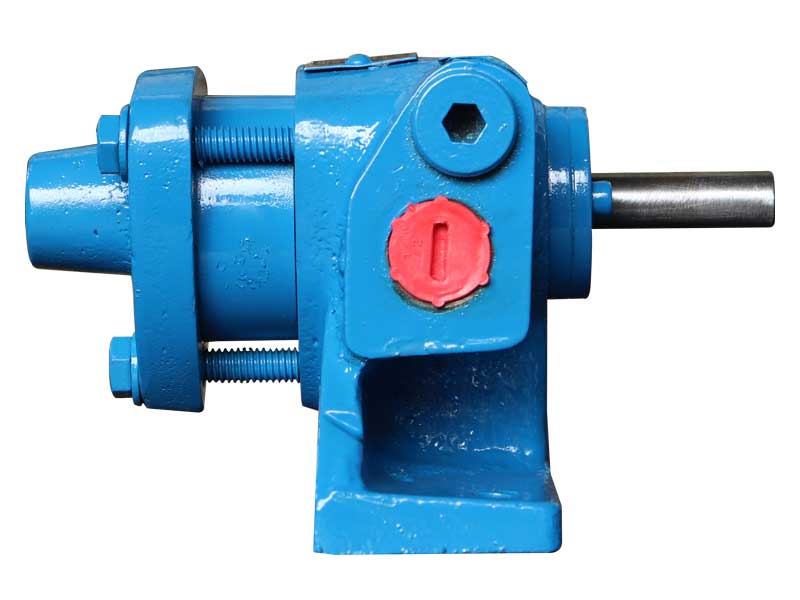

PI-IG-05

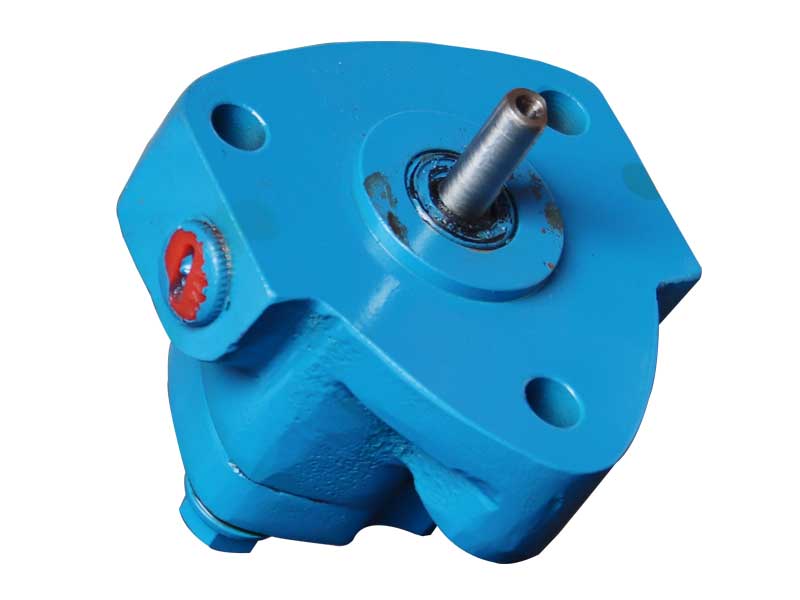

PI-LB-20

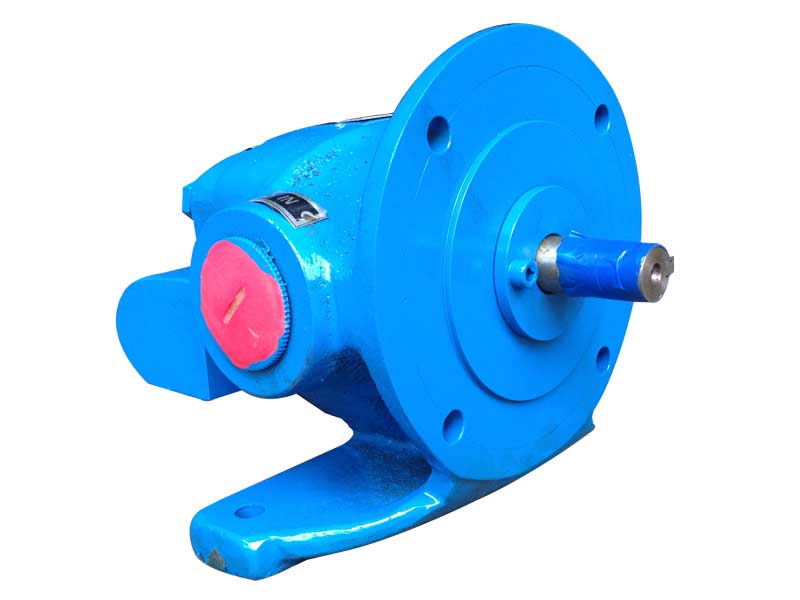

PI-LB-40
Brand Name: Shree Rotary Lobe Gear Pumps
These are small Rotary Positive Displacement Pumps IN 4 models.
These pumps can handle Lube Oil, LSHS. FO, LDO, Kerosene, Petrol, Veg. Oil & Ghee.
These LOBE pumps are so constructed that two self-lubricating bearings ensure high speed operation & vibration free
running resulting in minimum maintenance but with long service life.
| The pumping principle of this pump is Unique that it can contribute to exceptionally high suction lifts & low noise level. |
| Internal gearing principle of the pump with Axial flow ensures pulsation free continuous flow. |
| Precision machined components ensure high volumetric efficiency, contributing to overall efficiency. |
| Being single shaft design pump, the same can be dismantled without removing the pump from its base or disconnecting the pipes i.e. the pump can be serviced without shifting from its place. Below are the details of the 4 Lobe Pumps with their capacity. |
| Being compact & light weight design, this pump eliminates elaborate foundation_ |
Brand Name: Shree Rotary Lobe Gear Pumps
have been designed to handle fuel & lubricating oils as well as other fluids with similar properties.
These pumps are therefore ideally suited for following typical applications:
| Pressure lubricating & cooling of bearing, oil circulation through cooler, gear lubrications etc. |
| Boosting of fuel oil pressure for oil burner service & fuel injection pumps. |
| Pressure lubricating & cooling of bearing oil circulation through cooler, gear lubrications etc. |
| Unidirectional flow design for reversing shaft duties like machine tool gear boxes & crane duties. |
| Transfer of fuel oils to daily service tank preheating, circulation etc., |
| Ideal pumps for baby boilers. |
| PORT SIZE (SCREWED) | CAPACITY IN LPM AT PRESSURE (PSI) | PRESSURE(PSI) Vs H.P | |||||||||||
| NO | PUMP MODEL | SUCTION | DELIVERY | 0 | 2 | 4 | 6 | 8 | 0 | 2 | 4 | 6 | 8 |
| 1 | PI: LB: 10 | 1/2" | 1/2" | 12 | 11.54 | 11.11 | 10.71 | 10.34 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| 2 | PI: LB: 20 | 1/2" | 1/2" | 23 | 22.52 | 22.13 | 21.69 | 20.15 | 0.5 | 0.5 | 0.5 | 1 | 1 |
| 3 | PI: LB: 40 | 1" | 1" | 46 | 44 | 43.25 | 41.75 | 40.5 | 1 | 1 | 1 | 2 | 2 |
| 4 | PI: LB: 80 | 1 1/2" | 1 1/2" | 86 | 86.51 | 85.39 | 84.23 | 82.17 | 1 | 1 | 2 | 2 | 3 |
