'Popular' Fuel Injection Gear Pumps

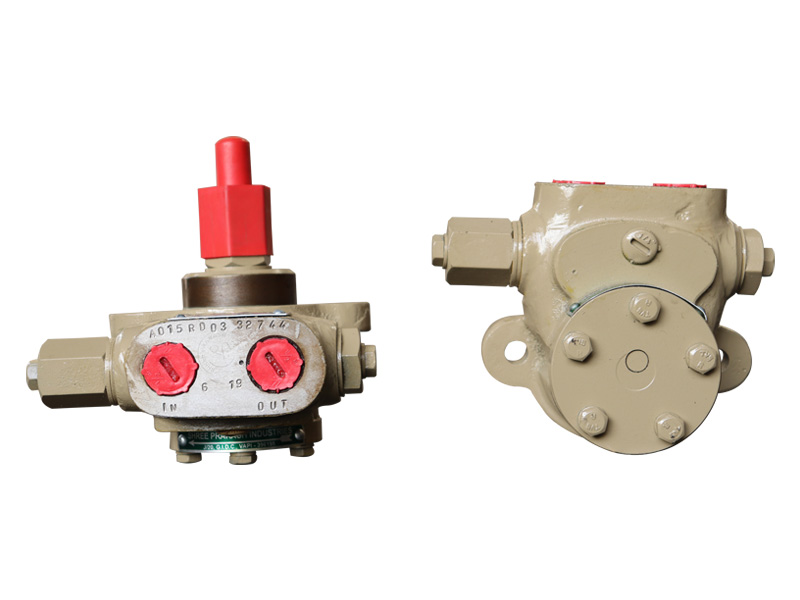

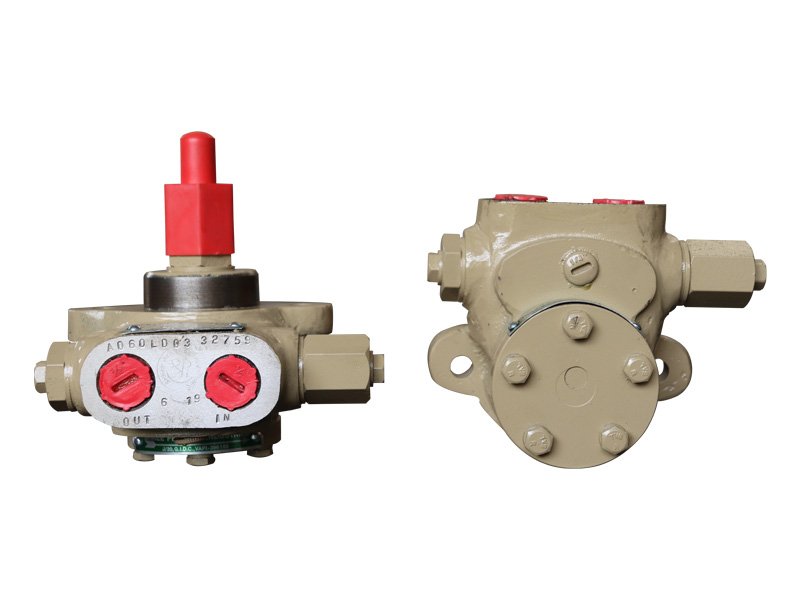

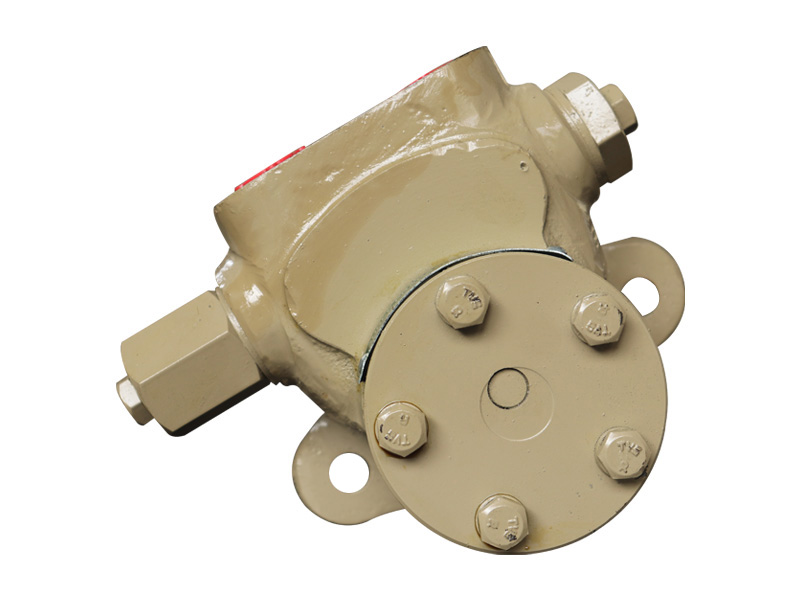

"A" Type (60 - 600 LPH)

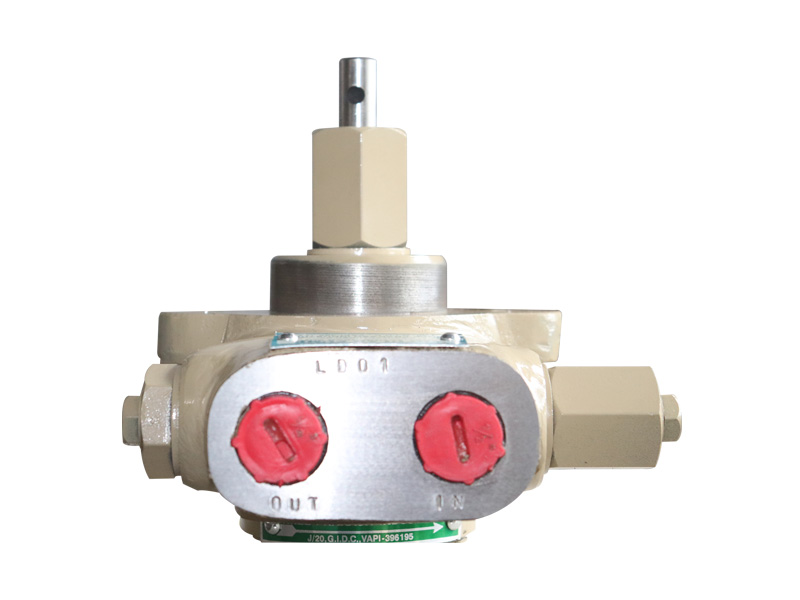

LDO1

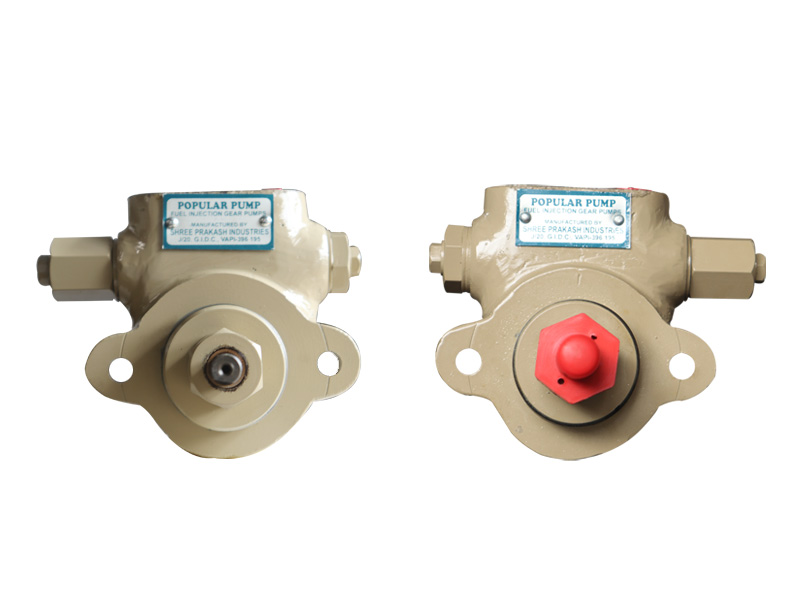

LDO1 / RDO1

RDO1

LDO3

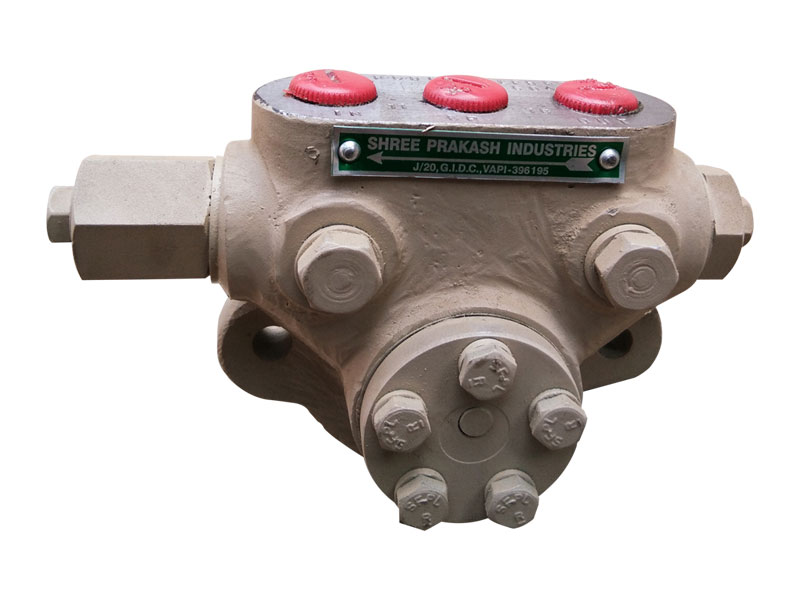

RDO3

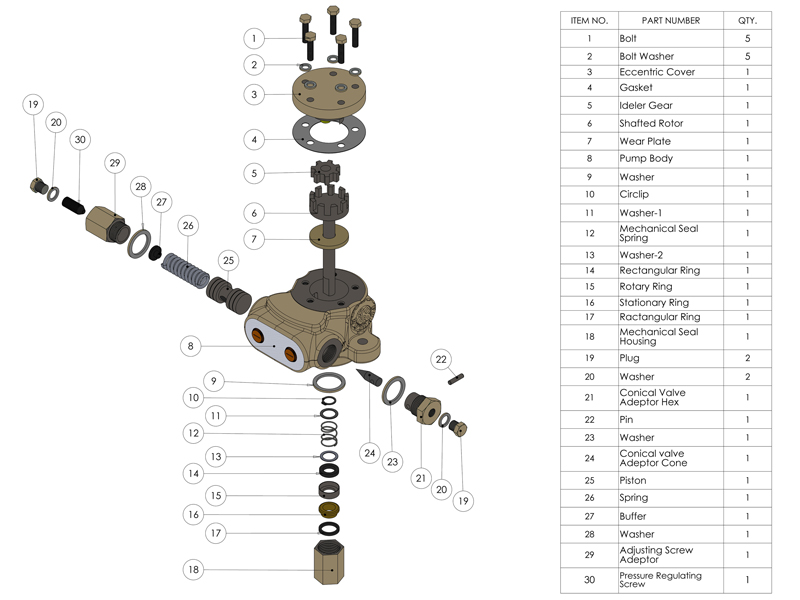

Isometric View/ Part Drawing

CAPACITY @ 1440 RPM (LPH)	CAPACITY @ 2880 RPM (LPH)	PRESSURE KG/CM.SQ	CLOCKWISE WITH BY-PASS	CLOCKWISE WITHOUT BY-PASS	ANTI-CLOCKWISE WITH BY-PASS	ANTI-CLOCKWISE WITHOUT BY-PASS	PORT SIZE (INCHES)
120	240	0-35	A60/90LPH-R-DO3	A60/90LPH-R-DO1	A60/90LPH-L-DO3	A60/90LPH-L-DO1	3/8 X 3/8 X 1/4(BY-PASS)
150	300	0-35	A015-R-DO3	A0-15-R-DO1	A015-L-DO3	A015-L-DO1	1/2 X 1/2 X 1/4(BY-PASS)
300	600	0-35	A030-R-DO3	A0-30-R-DO1	A030-L-DO3	A030-L-DO1	1/2 X 1/2 X 1/4(BY-PASS)
450	900	0-35	A045-R-DO3	A0-45-R-DO1	A045-L-DO3	A045-L-DO1	1/2 X 1/2 X 1/4(BY-PASS)
600	~	0-35	A060-R-DO3	A0-60-R-DO1	A060-L-DO3	A060-L-DO1	1/2 X 1/2 X 1/4(BY-PASS)

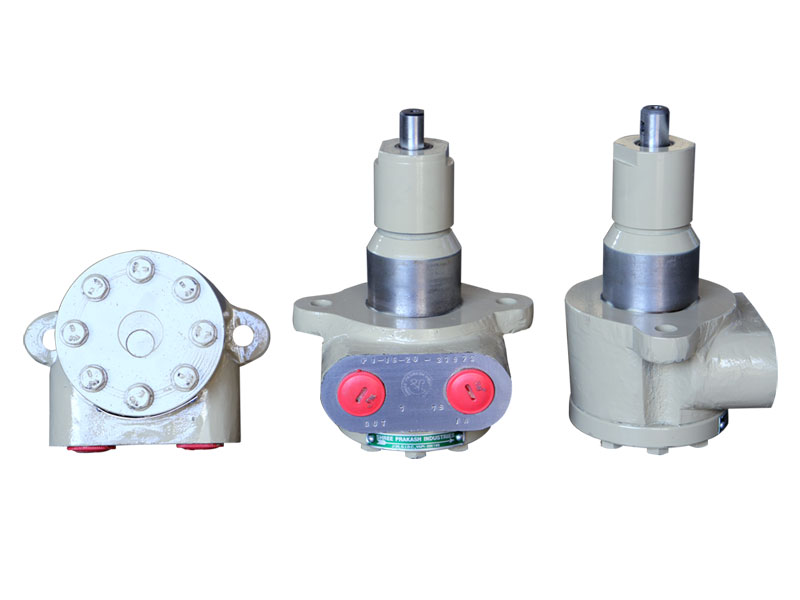

"B" Type (1000 - 2500 LPH)

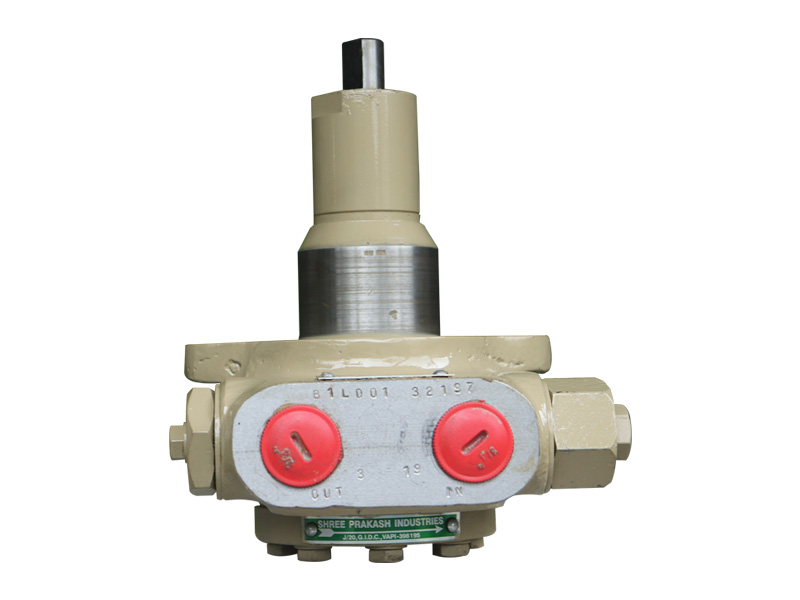

LDO1

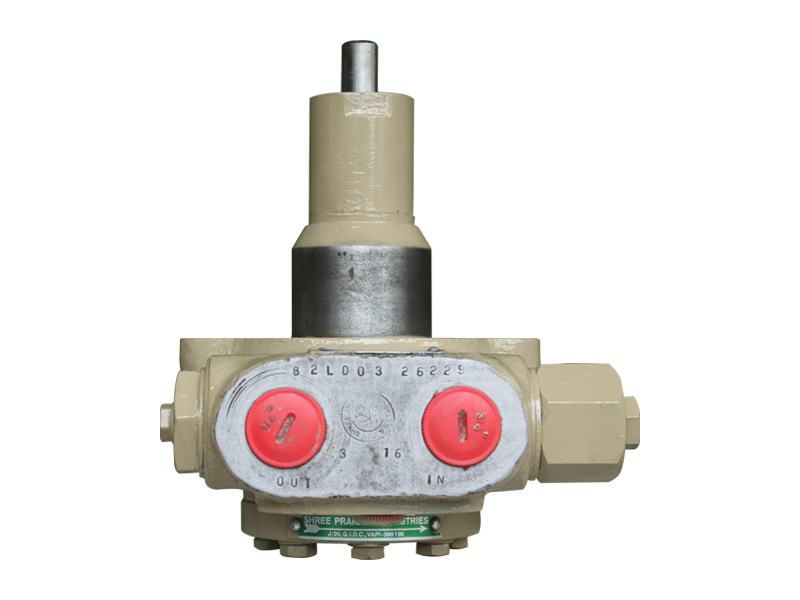

LDO3

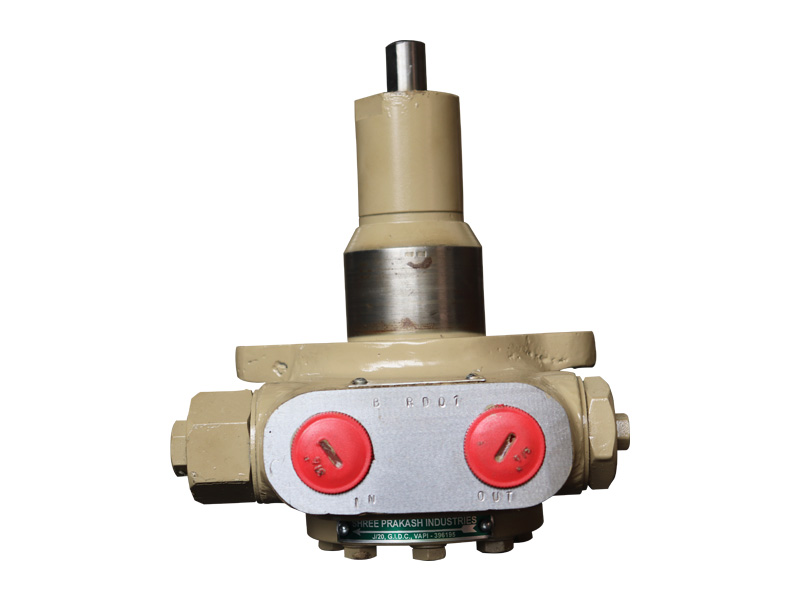

RDO1

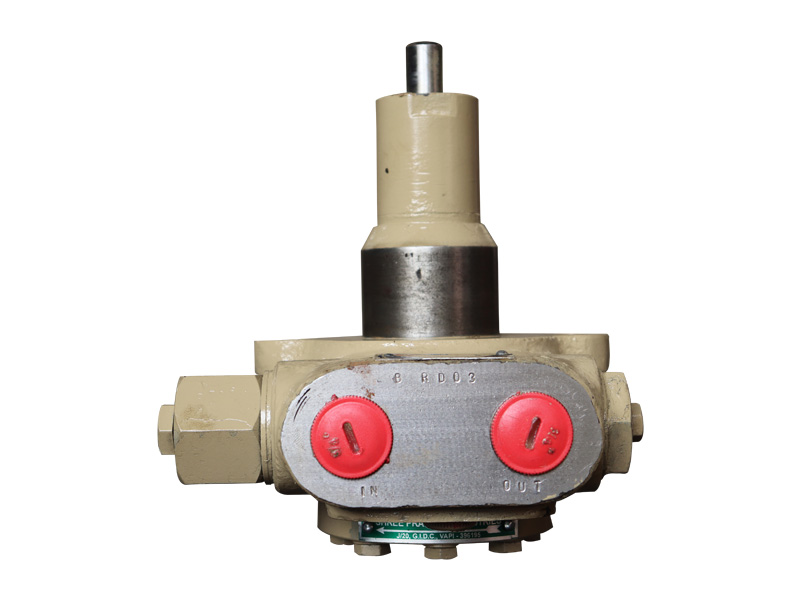

RDO3

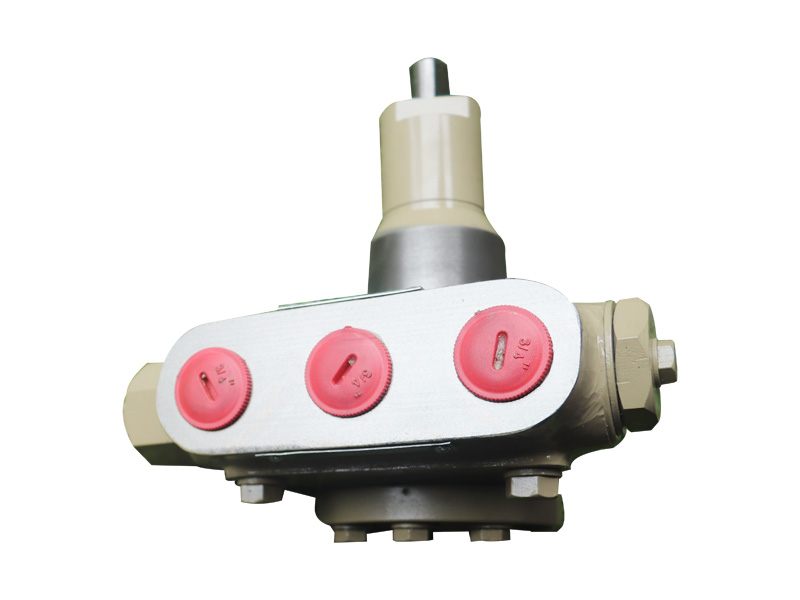

D02 Booster (without relief valve)

CAPACITY @ 1440 RPM (LPH)	CAPACITY @ 2880 RPM (LPH)	PRESSURE KG/CM.SQ	CLOCKWISE WITH BY-PASS	CLOCKWISE WITHOUT BY-PASS	ANTI-CLOCKWISE WITH BY-PASS	ANTI-CLOCKWISE WITHOUT BY-PASS	PORT SIZE (INCHES)
1000	~	0-35	B-1-R-DO3	B-1-R-DO1	B-1-L-DO3	B-1-L-DO1	3/4 X 3/4 X 3/8(BY-PASS)
1500	~	0-35	B-15-R-DO3	B-15-R-DO1	B-15-L-DO3	B-15-L-DO1	3/4 X 3/4 X 3/8(BY-PASS)
2000	~	0-35	B-2-R-DO3	B-2-R-DO1	B-2-L-DO3	B-2-L-DO1	3/4 X 3/4 X 3/8(BY-PASS)
2500	~	0-35	B-25-R-DO3	B-25-R-DO1	B-25-L-DO3	B-25-L-DO1	3/4 X 3/4 X 3/8(BY-PASS)

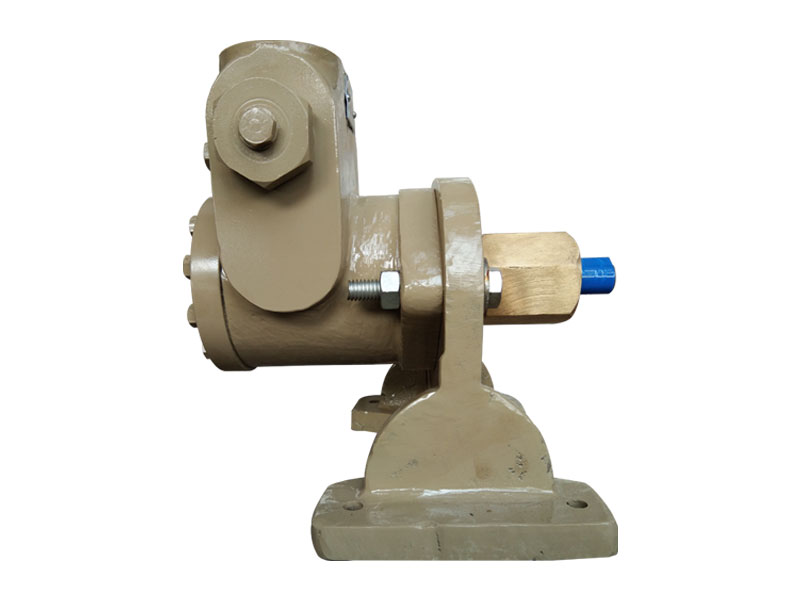

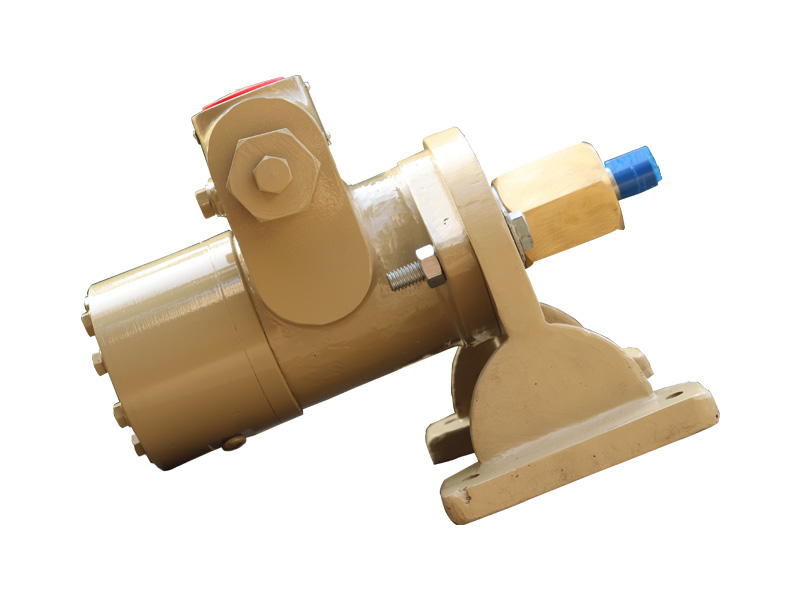

VBHGR-Series (3000 - 6000 LPH)

VBHGR- with steam jacket

VBHGR

CAPACITY @ 1440 RPM (LPH)	CAPACITY @ 2880 RPM (LPH)	PRESSURE KG/CM.SQ	CLOCKWISE WITH BY-PASS	CLOCKWISE WITHOUT BY-PASS	ANTI-CLOCKWISE WITH BY-PASS	ANTI-CLOCKWISE WITHOUT BY-PASS	PORT SIZE (INCHES)
3000	~	0-35	VBHGR-PDC-3000LPH-R-3H	VBHGR-PDC-3000LPH-RDO1	VBHGR-PLC-3000LPH-L-3H	VBHGR-PLC-3000LPH-L-DO1	1 X 1 X 1
4500	~	0-35	VBHGR-MDC-4500LPH-R-3H	VBHGR-MDC-4500LPH-RDO1	VBHGR-MLC-4500LPH-L-3H	VBHGR-MLC-4500LPH-L-DO1	1 X 1 X 1
6000	~	0-35	VBHGR-GDC-6000LPH-R-3H	VBHGR-GDC-6000LPH-RDO1	VBHGR-GLC-6000LPH-L-3H	VBHGR-GLC-6000LPH-L-DO1	1 X 1 X 1

NVBGR Series (60 - 2500 LPH)

Product Name

CAPACITY @ 1440 RPM (LPH)	CAPACITY @ 2880 RPM (LPH)	PRESSURE KG/CM.SQ	CLOCKWISE	ANTI-CLOCKWISE	3 PORT ON TOP (INCHES)
			"A" TYPE SERIES
120	140	0-35	NVBGR-PPDC-120-LPH-R-3H	NVBGR-PPLC-120-LPH-L-3H	3/8 X 3/8 X 3/8
150	300	0-35	NVBGR-PPDC-150-LPH-R-3H	NVBGR-PPLC-150-LPH-L-3H	1/2 X 1/2 X 1/2
300	600	0-35	NVBGR-PDC-300-LPH-R-3H	NVBGR-PLC-300-LPH-L-3H	1/2 X 1/2 X 1/2
400	900	0-35	NVBGR-MDC-450-LPH-R-3H	NVBGR-MLC-450-LPH-L-3H	1/2 X 1/2 X 1/2
600	~	0-35	NVBGR-GDC-600-LPH-R-3H	NVBGR-GDC-600-LPH-L-3H	1/2 X 1/2 X 1/2
			"B" TYPE SERIES
1000	~	0-35	NVBHR-PDC-1000-LPH-R-3H	NVBHR-PDC-1000-LPH-L-3H	3/4 X 3/4 X 3/4
1500	~	0-35	NVBHR-MDC-1500-LPH-R-3H	NVBHR-MDC-1500-LPH-L-3H	3/4 X 3/4 X 3/4
2000	~	0-35	NVBHR-GDC-2000-LPH-R-3H	NVBHR-GDC-2000-LPH-L-3H	3/4 X 3/4 X 3/4

Brand : “Popular”

High quality! High precision! Trouble free…!! Fuel injection internal gear pumps

Applications:

Boiler, oil burner, hydraulic drive and pressure pump

Filter pumping

Pressure and transfer pump

Booster pump for diesel locomotive

Pump for forced feed lubrication

Eventually with separate pressure regulating valve

Gas oil, medium, heavy and very heavy oil

Pumps for phf units

For motor-pump group with flange and coupling parts

For lubracation oil and hydraulic oil. Min. Viscosity 2.5 cst
max. Viscosity 450 cst
max temperature 250*c

Pressure discharge upto 0- 40 bar(kg/cm2 ), upto 50bar for hydraulic oil.

Advantages

Pump barrel made of hydraulic cast-iron

Gear made of high quality steel

Self inducing

With internal by-pass

Pressure regulator, progressively adjustable

Simple attachment with flange

Tight shaft seal

Turning direction to the right or left 1440 or 2800 rpm (see technical data)

Different mounting position with shaft horizontally or vertically with seal at the bottom

Vaccum, pressure and control connection easy to reach

Shree prakash industries make Internal Gear Pump is a positive displacement gear pump available with or without a built-in pressure relief valve. The outstanding design prove them the most reliable over a wide range of application. These pumps are fitted with mechanical seal which enable them to run for many years without giving any trouble whatsoever. These pumps are of high precision and manufactured to tool room quality but on a production line basis. The internal lubricating system is so designed that the liquid running through the pump acts as the lubricant. It is of course important that these pumps do not handle abrasive liquids with solid matter. All “SPI” make internal gear pumps are self-priming and give a maximum vacuum of 610-660 mm Hg. These pumps can handle non-abrasive and non-corrosive liquids of maximum viscosity 455 centistokes and temperature up-to 200*C.
